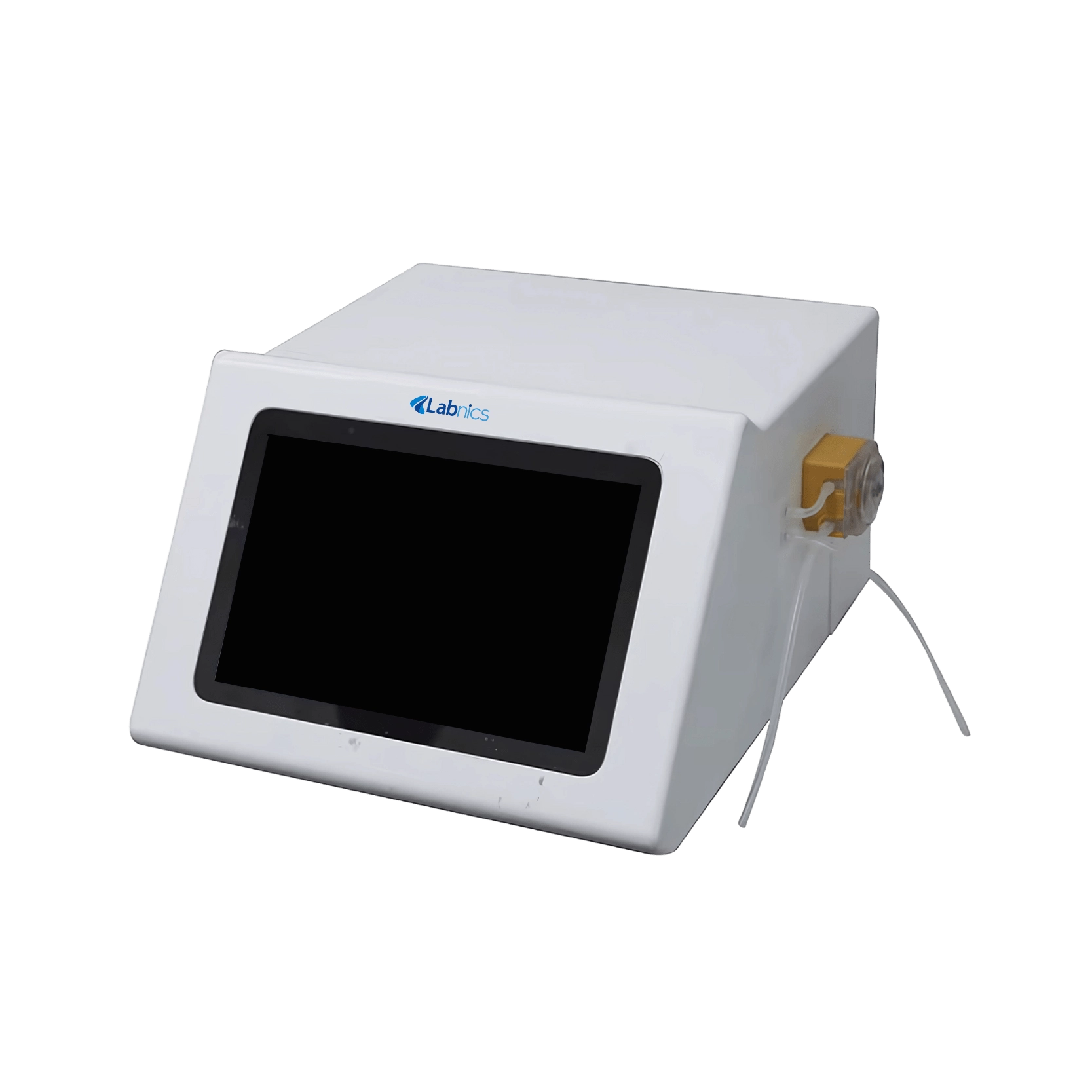

Automatic Density Meter NAD-100 offers a measurement range from 0 g/cm³ to 3 g/cm³, delivering accurate analysis. It has multiple output options, allowing effortless data export. This density meter includes an automated sampling system for improved testing efficiency. It includes density and alcohol concentration test modes for versatile use. Our unit also has a smart interface and three-level user management for secure access.
| Measurement Range |
NAD-100 : 0 to 3 g/cm³ NDSM-101 : 0 to 3000 kg/m³ (0 to 3 g/cm³) NLDM-100 : 0.001 g/cm³ NTDT-101 : ≤ 500 g |
| Temperature Control Range | 5°C to 45°C |
| Temperature Control Stability | ±0.02°C |
| Repeatability | ±0.00001 g/cm³ |
| Accuracy | ±0.00003 g/cm³ |
| Resolution | 0.00001 g/cm³ |
| Display | 10.4-inch TFT Color Touch Screen |
| Data Storage | 16G |
| Temperature Control Method | Peltier Temperature Control |
| Output | USB, RS232, RJ45, SD Card, USB Flash Drive |
| Sampling Process | Fully Automatic (Compatible with Manual) |
| Test Mode | Density, Alcohol Concentration, and Custom Formula |
| User Management | Yes, three-level Authority Management |
| Audit Trail | Yes |
| Observation Method | Video |
| Electronic Signature | Yes |
| Custom Method Library | Yes |
| Export File Verification High-level Protection MD5 | Yes |
| Multiple File Formats for Export | PDF and Excel |
| Printing Type | WIFI Printing, Serial Port Printing |
| Power Supply | 110V to 230V, 50Hz / 60Hz |
| Dimensions (L × W × H) | 480 × 320 × 200 mm |
| Weight | 8 Kg |
