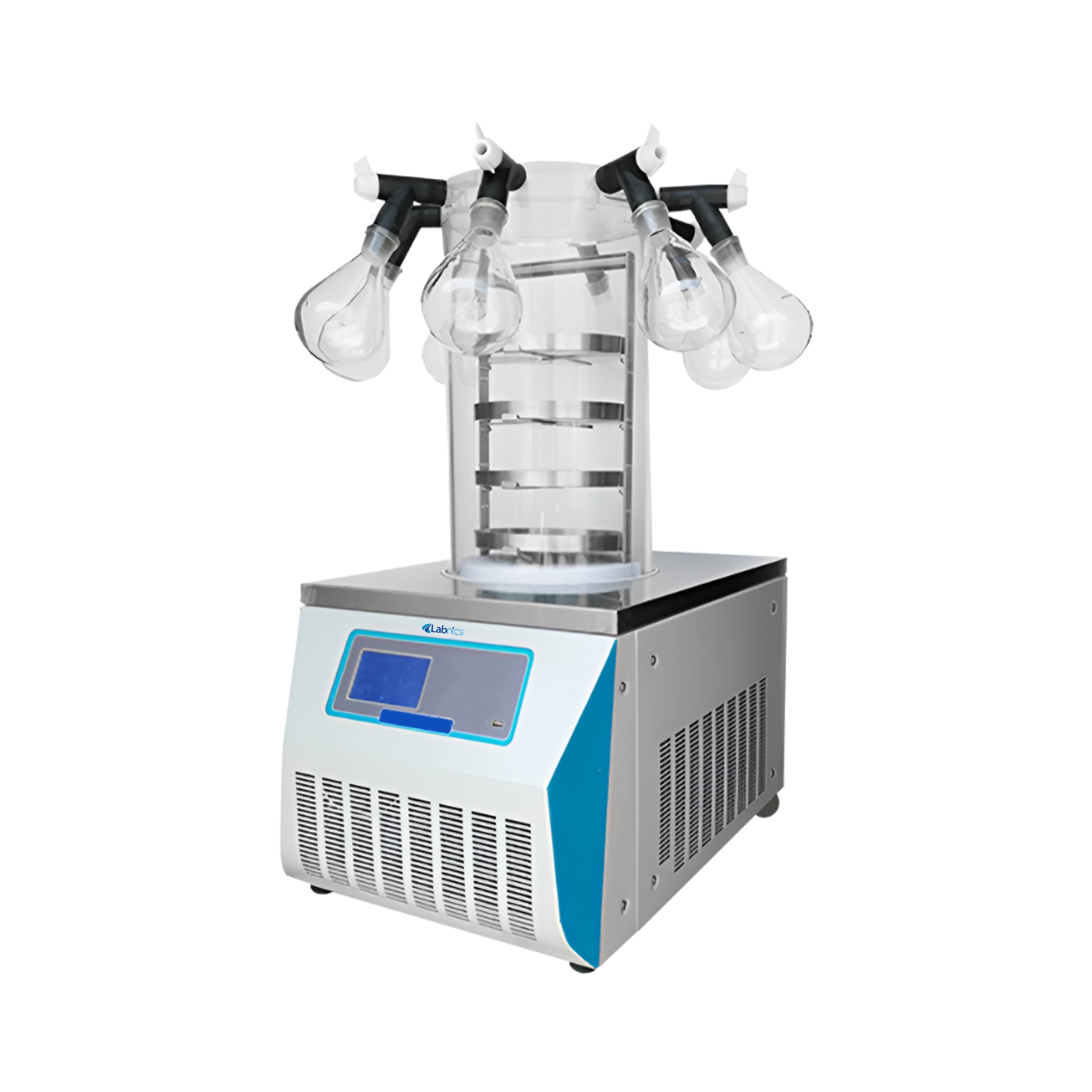

Benchtop Freeze Dryer NBFD-102 handles up to 1.2 L of bulk liquid with a vacuum degree maintained under 10 Pa. It is equipped with a high-speed vacuum pump for quick pressure reduction and utilizes CFC-free refrigerant for eco-friendly operation. The system offers optional cascade refrigeration for lower condenser temperatures. Stainless steel components ensure enhanced corrosion resistance and long-term durability.
| Drying Area | 0.12 m² |
| Condenser Temperature | -50°C or -80°C |
| Vacuum Degree | Less than 10 Pa |
| Condenser Capacity | 3 to 4 kg / 24 h |
| Sample Tray | Φ200 × 4 |
| Shelf Spacing | 70 mm |
| Shelf Temperature Range | Ambient Temperature to +25°C |
| Bulk Liquid Capacity | 1.2 L |
| Vial Capacity |
Φ12 mm : 820 pcs Φ16 mm : 460 pcs Φ22 mm : 244 pcs |
| Vacuum Pump Flow Rate | 2 L/s, 7.2 m³/h |
| Defrosting | Off Cycle Defrosting |
| Manifold | 8 Ports |
| Flask | 1000 ml, 500 ml, 250 ml, 100 ml, 50 ml |
| Power Consumption | 970 W |
| Power Supply | 220V / 50 Hz |
| Dimensions | 610 × 450 × 830 mm |
| Weight | 75 Kg |
