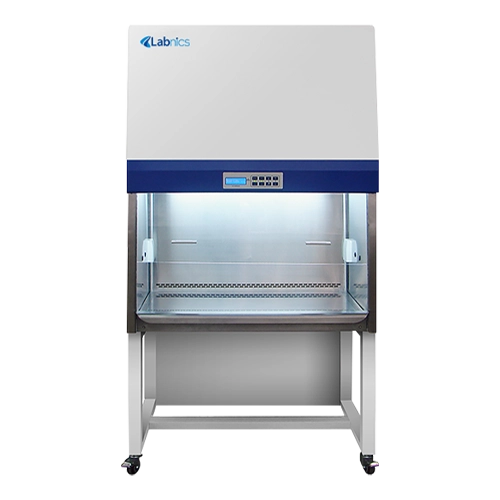

Class II Biosafety Cabinet NBSC-100 is a safety containment cabinet with type A2 safety level and HEPA filters that recirculates 70% filtered air within the cabinet and discharges 30% of filtered air into the outer environment with the help of HEPA exhaust filter. As a result, it limits the operator's exposure to even minute quantities of volatile toxic or hazardous chemicals and radio nucleotide by negative pressure inward airflow. It thereby helps provide a suitable work environment to the user and the product against pathogens and potentially hazardous microbial agents or materials.
| Air circulation | 0.7 |
| Air exhaust | 0.3 |
| Glass door orientation | Vertical |
| HEPA Filters | 99.999% efficient at 0.3 µm (×2) |
| Air pressure | 500 Pa |
| Inflow velocity | 0.53 m/s |
| Downflow velocity | 0.35 m/s |
| Illumination | ≥ 1000 Lux |
| Display | LED Display |
| Alarm system | Audio – visual alarm |
| Filter guard | Aluminum alloy frame |
| Power consumption | 1000 W |
| Power supply | AC 220 / 110 V ±10%, 50 / 60 Hz ±1 Hz |
| Noise level | ≤ 65 dB |
| Cabinet material | Cold-rolled steel with anti-bacteria powder coating |
| Work table material | 304 Stainless Steel |
| Window material | Two-layer laminated toughened glass |
| Window thickness | ≥ 5 mm |
| Interior Dimensions (W × H × D) | 965 × 560 × 670 mm |
| Exterior Dimensions (W × H × D) | 1040 × 2060 × 760 mm |
| Weight | 220 kg |
