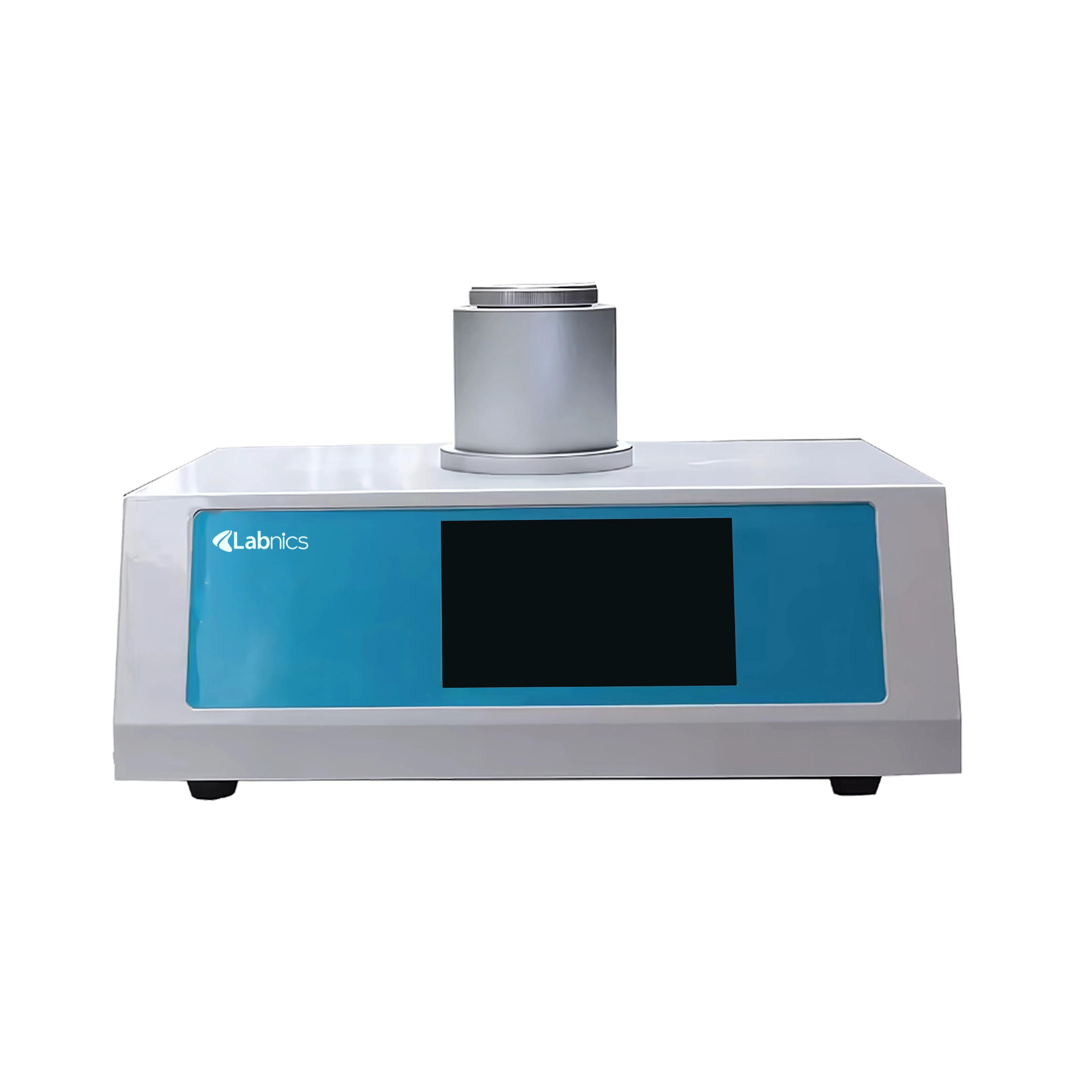

Differential Scanning Calorimeter NDSC-100 has a temperature resolution of 0.01 °C and can identify the inner heat transition related to temperature and heat flow. Designed with touch screen display for setting the several parameters like temperature, sample temperature, oxygen and nitrogen flow rate and thermal signals. It has double temperature probe to ensure repeatability of the sample temperature measurements. Equipped with USB communication interface for reliable transfer of the data.
| Temperature Range | Room temperature to 500 °C (Room temperature to 800 °C Optional) |
| Temperature Resolution | 0.01°C |
| Heating Rate | 0.1 ~ 80 °C / min (arbitrary set) |
| Constant Temperature Advise | Advise < 24 hours |
| Temperature Control Mode | Heating, constant temperature, programmable, temperature continuous |
| DSC Range | 0 to ±500 mW |
| DSC Resolution | 0.001 mW |
| DSC Accuracy | 0.001 mW |
| Atmosphere Control of Gas | Nitrogen, Oxygen (automatic switching) |
| Gas Flow | 0 – 200 ml/min |
| Gas Pressure | 0.2 MPa |
| Crucible | Aluminum crucible, Φ 6.6 × 3 mm |
| Standard Substances | Indium, Tin, Zinc (user can correct temperature and heat enthalpy) |
| Data Interface | Standard USB interface |
| Display Mode | 24-bit color, 7 inch touch screen display |
| Output Way | Computer and printer |
| Power Supply | AC110V / 220V, 50 / 60Hz, Single Phase |
| Power | 300 W |
