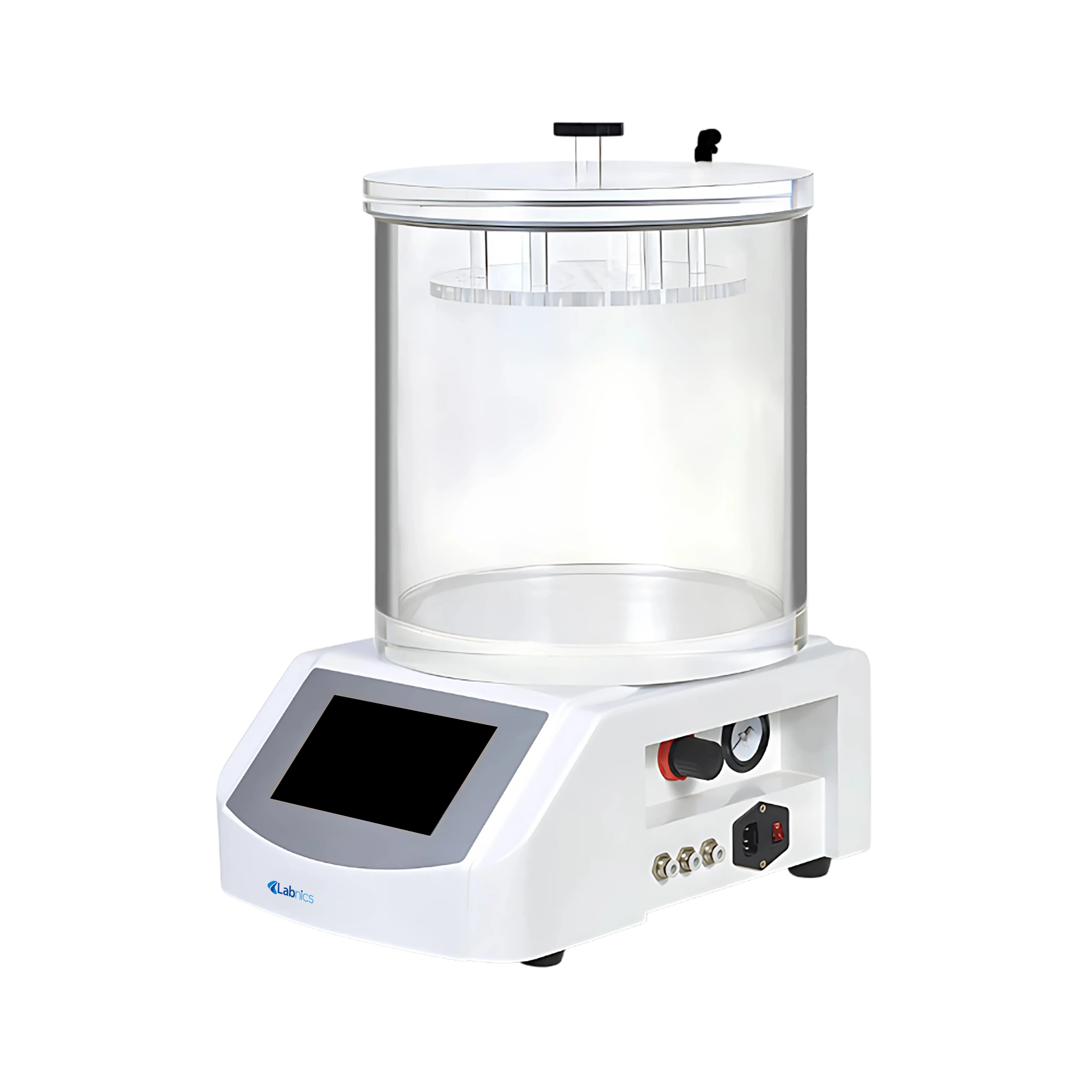

Vacuum Leak Tester NVLT-200 offers a vacuum degree range of 0 to -90 kPa with a fast response speed for accurate and reliable results. It features a 7-inch touch screen for convenient operation and clear data display. This instrument provides multiple test modes for flexible and customizable testing. Its compact design and customizable chamber sizes make it suitable for a wide variety of packaging materials. A long pressure holding time ensures dependable leak testing across different applications.
| Vacuum Degree | 0 to -90 kPa |
| Response Speed | < 5 ms |
| Resolution | 0.01 kPa |
| Sensor Precision | ≤ 0.5 |
| Air Source | Compressed Air |
| Test Mode | Single point mode, Increment mode |
| Screen | 7-inch Touch Screen |
| Pressure Range | 0.2 to 0.7 MPa |
| Port Size | Φ6 |
| Pressure Holding Time | 0 to 99999 s |
| Vacuum Chamber Sizes |
Φ270 × 210 mm (H), Φ360 × 585 mm (H), Φ460 × 330 mm (H) |
| Dimension (L × B × H) | 420 × 300 × 165 mm |
| Net Weight | 20 Kg |
| Gross Weight | 25 Kg |
