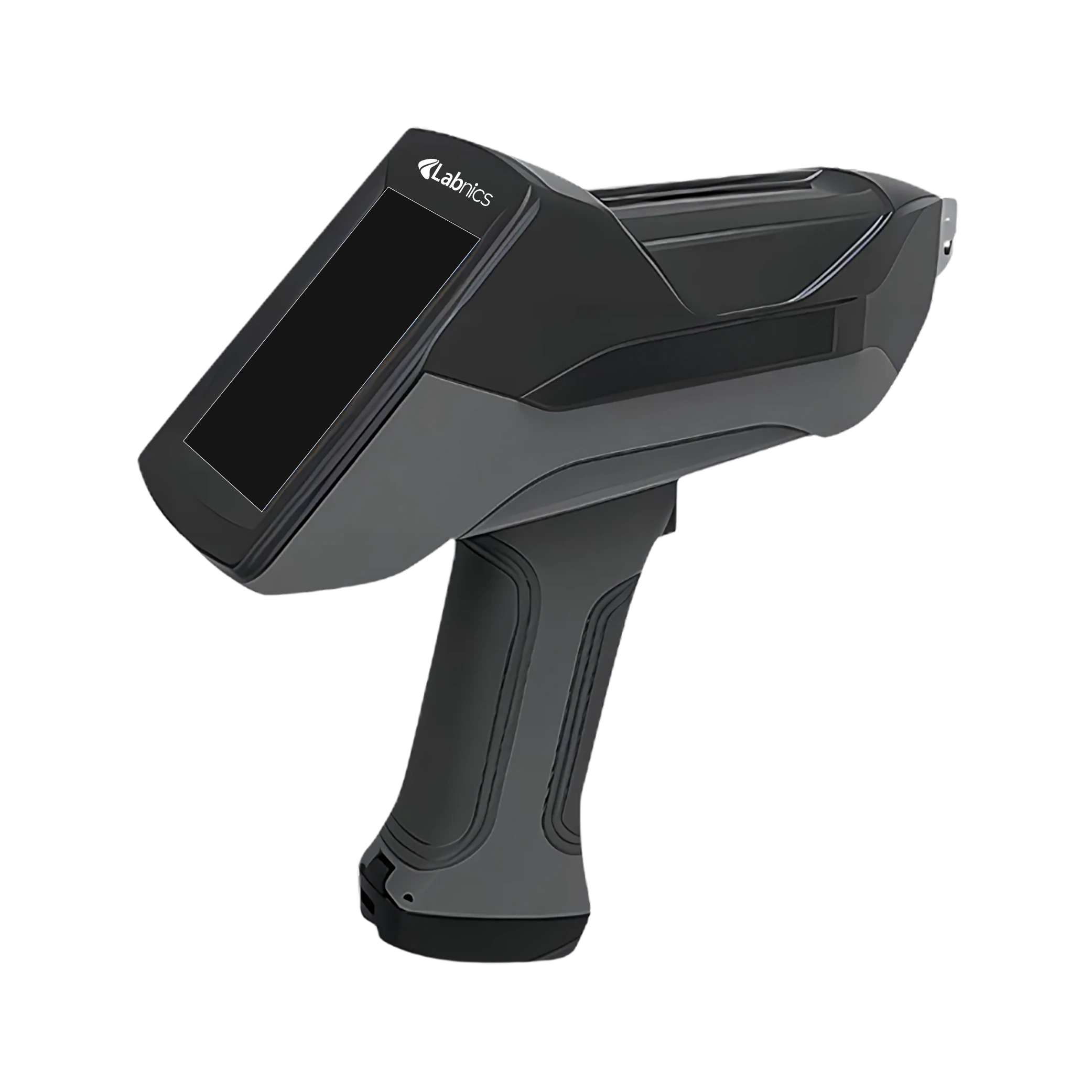

Handheld LIBS Analyzer NLIBS-100 operates efficiently between -5°C and +40°C and uses a 1064 nm excitation source. It supports comprehensive analysis of multiple elements in aluminum-based alloys and allows rapid detection of carbon and other elements for efficient on-site testing. The unit features a compact and lightweight design for enhanced mobility and is equipped with a high-power nano laser for effective elemental detection.
| Detectable Elements | Al, Mg, Si, Be, Li, Cr, Cu, Fe, Mn, Mo, Ni, Ti, V, W |
| Excitation Source | 1064 nm pulsed all-solid-state, passively Q-switched laser |
| Operating Temperature Range | -5°C to +40°C (32°F to 104°F) |
| Display | 4.0-inch color backlit HD resistive touch screen |
| Detection Time | 1-second fast mode for brand and element display |
| Detection Material | 1 to 8 series aluminum alloys with brand identification and elemental analysis |
| Scope of Analysis | Main elements in aluminum-based alloys |
| Analysis Algorithm | Spectral denoising, PLS, PCA |
| Power Supply | 14.8 V, 3250 mAh battery, 43 Wh / 4 hours runtime |
| Product Dimensions | 90 × 280 × 150 mm |
| Packing Dimensions | 40 × 50 × 60 cm |
| Net Weight | 1.8 Kg |
| Gross Weight | 10 Kg |
