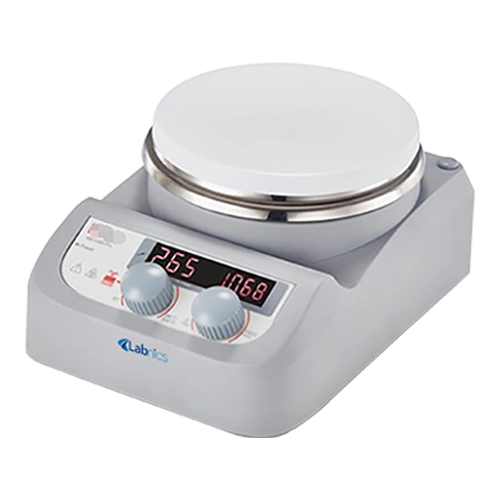

Digital Hotplate NDH-100 is a benchtop laboratory instrument used to perform various heating procedures such as digestion, evaporation, and dissolution. It features a ceramic top coat that prevents chemical corrosion and ensures long-term durability. The unit is regulated with platinum temperature sensors for accurate monitoring of temperature fluctuations and provides high-temperature warning to ensure user and equipment safety.
| Work Plate Dimension | Φ135 mm (5 inches) |
| Work Plate Material | Stainless Steel with Ceramic Coating |
| Motor Type | Brushless DC Motor |
| Motor Rating Input | 5 W |
| Motor Rating Output | 3 W |
| Heating Output | 500 W |
| Power Supply | 515 W, 100-120V / 200-240V, 50/60 Hz |
| Speed Display Resolution | ±1 rpm |
| Heating Temperature Range | Up to 280°C ±1°C |
| Control Accuracy of Work Plate | ±1°C (<100°C), ±1% (>100°C) |
| Over Heat Protection | 320°C |
| Temperature Display Accuracy | ±1°C |
| PT1000 Accuracy | ±0.5°C |
| Dimensions (W × D × H) | 150 × 260 × 80 mm |
| Weight | 1.8 Kg |
| Permissible Ambient Temperature & Humidity | 5–40°C, 80% RH |
