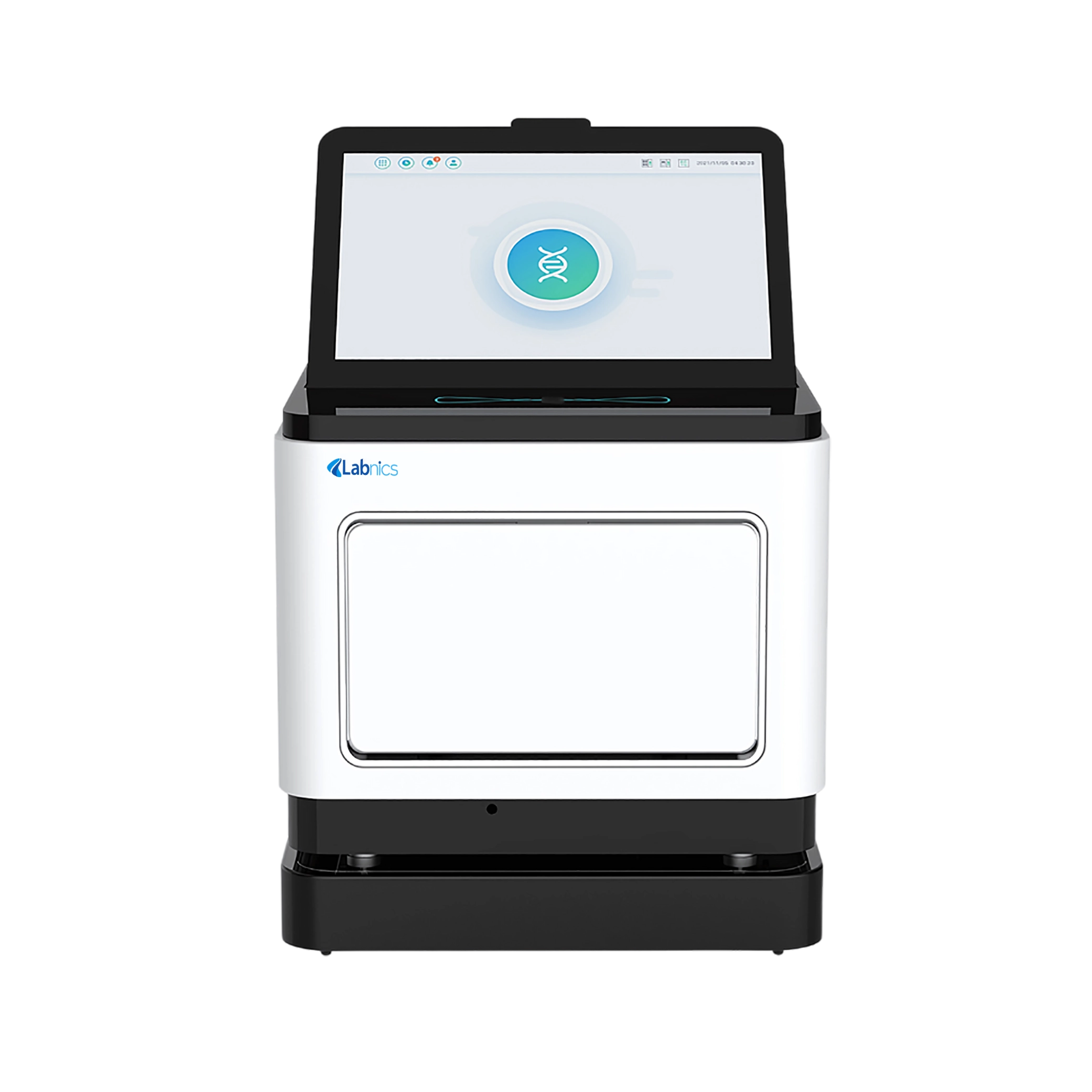

DNA Analyzer NDA-100 offers 100 bp long single-end reads and 150 bp long paired-end reads for versatile genomic analysis. This analyzer utilizes self-luminescence technology to generate light, minimizing noise and enhancing signal clarity. It features an integrated sequencing flow cell that employs microfluidics for efficient sample processing. The system is equipped with a 12.1-inch high-resolution LCD touchscreen for user-friendly operation.
| Read Lengths |
100 bp single-end reads with 25 million effective reads 150 bp paired-end reads with 25 million effective reads 100 bp reads with 20 million effective reads 150 bp reads with 20 million effective reads |
| Operating Temperature | 15°C to 30°C |
| Relative Humidity | 20% RH to 80% RH |
| Atmospheric Pressure | 70 kPa to 106 kPa |
| Storage Temperature | -20°C to 50°C |
| Maximum Sound Pressure | 65 dBA |
| Shell Protection Grade | IPX0 |
| Touch Screen Type | LCD Touch Screen |
| Touch Screen Size | 12.1 Inch |
| Touch Screen Resolution | 1280 × 800 |
| Computing Module |
CPU: Intel i7-10700 (8 Core) Internal Storage: 64 GB SSD: 256 GB SSD + 2 TB HDD |
| Rated Voltage and Power | 24V DC, 5A |
| Dimensions (L × W × H) | 348 × 312 × 257 mm |
| Weight | -- |
