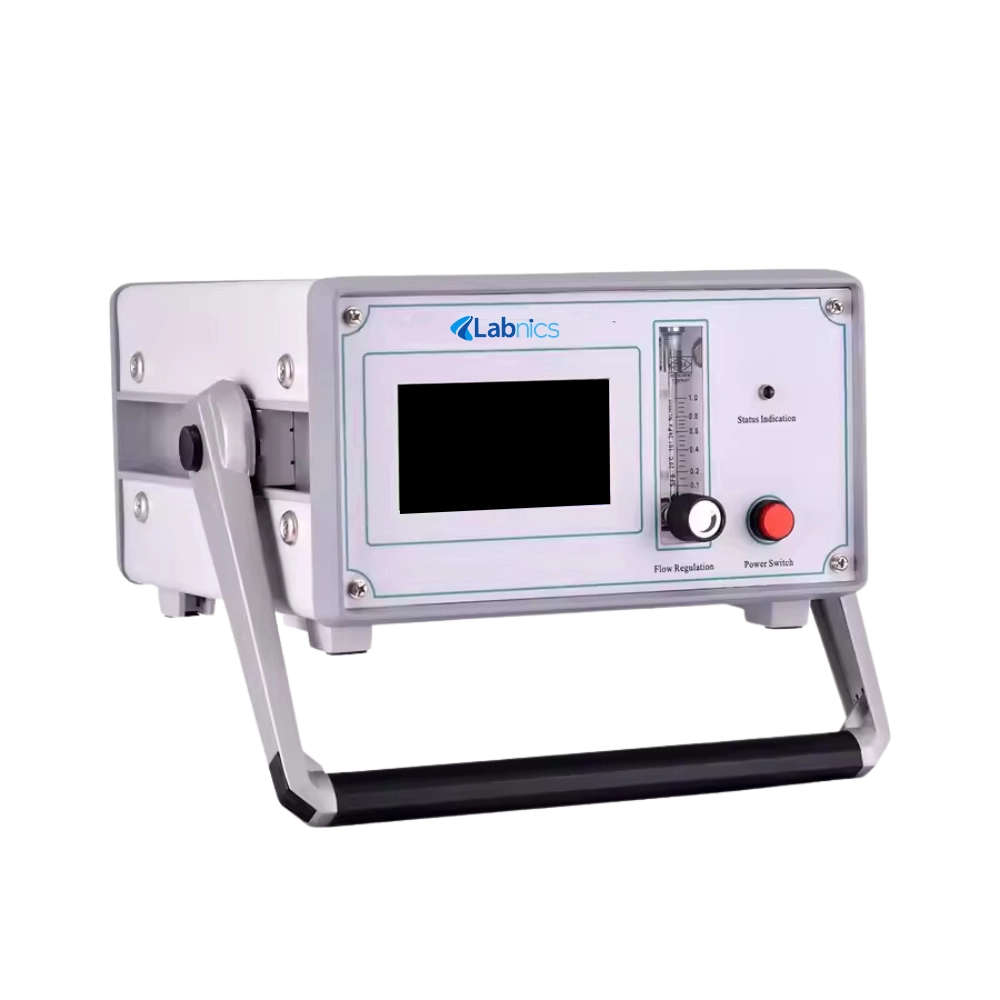

Portable SF6 Dew Point Analyzer NSFD-100 measures dew points within a range of -80°C to +20°C, providing precise and reliable readings. It features a high-accuracy advanced dew point sensor for accurate moisture measurement. The analyzer offers a sampling flow rate of 0.6 L/min, ensuring consistent testing performance. This unit is designed to enable efficient printing of test results for easy documentation and includes an LCD display for clear and easy monitoring.
| Gas Measured | SF6 |
| Dew Point Measurement Range | -80°C to +20°C |
| Moisture Measurement Range | 0 to 19999 μL/L |
| Accuracy |
±0.5°C (-60°C to +20°C) ±1.0°C (-80°C to -60°C) |
| Dew Point Resolution | 0.1°C |
| Moisture Resolution | 1 μL/L |
| Response Time |
63% in 5s, 90% in 45s (-60°C to +20°C) at +20°C and 0.1 MPa 63% in 10s, 90% in 240s (+20°C to -60°C) at +20°C and 0.1 MPa |
| Sampling Flow Rate | 0.6 L/min |
| Flow Rate Variation | ±20% |
| Gas Consumption Per Test | 2 L (101.2 kPa) |
| Pressure Range | 0 to 1.0 MPa |
| Operating Temperature Range | -20°C to +60°C |
| Humidity Range | 0 to 100% RH |
| Data Storage | Up to 50 Test Results |
| Storage Temperature | -20°C to +80°C |
| Power Supply |
Built-in Rechargeable Battery Sufficient for 10 Hours Continuous Operation |
| Charging Time | 4 Hours |
| Dimensions | 250 × 150 × 300 mm |
| Weight | 3.5 Kg |
