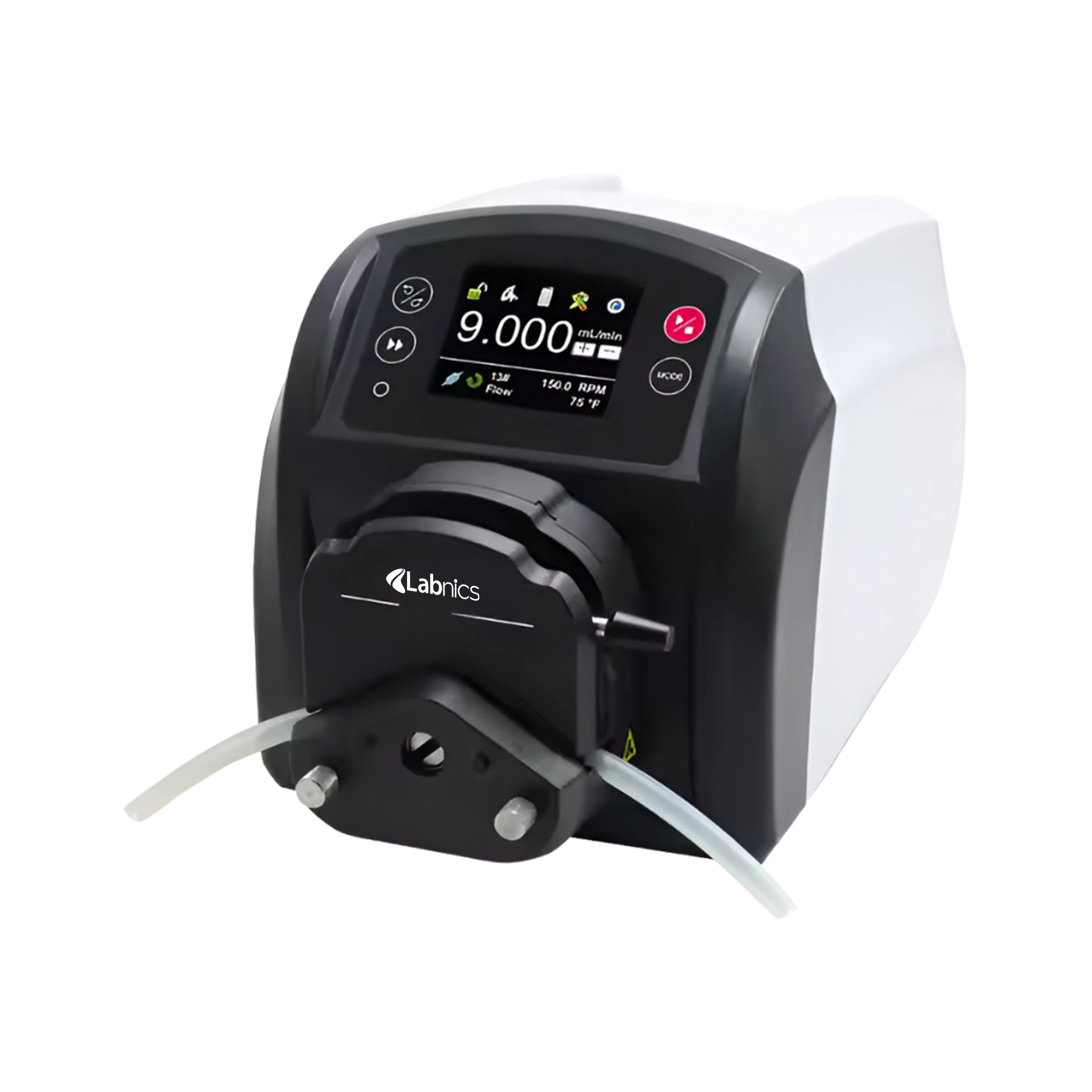

Dispensing Peristaltic Pump NDPP-100 offers a flow range from 0.005 to 1750 mL/min for precise fluid control. It operates efficiently in a temperature range of 0 to 40°C. The unit features a communication interface for easy integration with automated systems and supports flexible external control inputs for customized operations. A built-in flow calibration function ensures high-accuracy dispensing performance.
| Flow Range |
NDPP-100 : 0.005 to 1750 mL/min NDPP-203 : 0.3 to 6000 mL/min NIFPP-500 : 0.0002 to 65 mL/min NIFPP-707 : 0.69 to 12000 mL/min |
| Speed Range | 0.1 to 350 rpm |
| Speed Resolution | 0.1 rpm |
| Speed Accuracy | < ±0.2% |
| Working Environment | Temperature 0 to 40°C |
| Relative Humidity | < 80% |
| IP Grade | IP31 |
| Communication Interface | RS485 Interface, MODBUS Protocol Available |
| External Control Interface |
Input Level: 5V, 12V (Standard), 24V (Optional) Analog Control: 0–5V (Standard), 0–10V, 4–20mA (Optional) |
| Power Consumption | < 40 W |
| Power Supply | AC 100 to 240V, 50/60 Hz |
| Dimensions (L × W × H) | 258 × 180 × 197 mm |
| Weight | 3.9 Kg |
